Back-Up Ring ES3

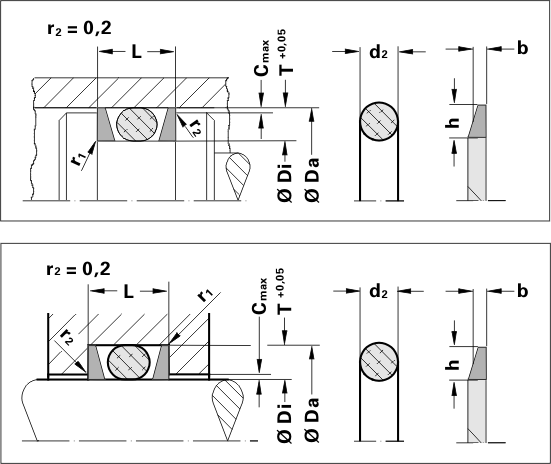

Back-up ring, trapezoid, one layer, slotted, for internal sealing applications. Trapezoid back-up rings reduce the sealing gap with their shape and permit higher system pressures.
Depending on one-sided or alternating pressurisation, one or two back-up rings are used. For details on groove sizing (groove width L), please refer to our application catalogue or contact our application technology department.

Application Range
Temperature: -50 °C / +100 °C
Standard Material: POM

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.
