Back-Up Ring ES6

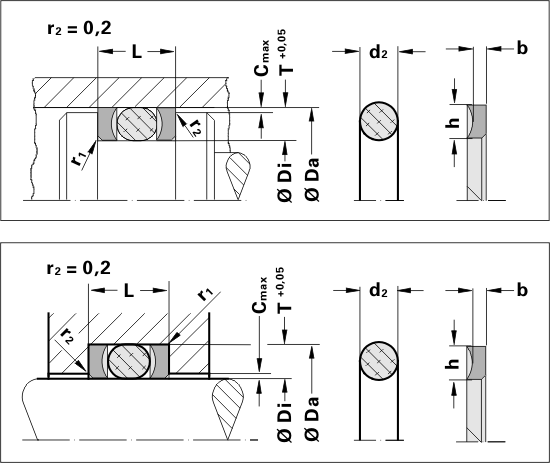

Back-up ring, one layer, slotted, concave, inside chamfer. The shape of the O-ring is retained approximately, as a result of which higher stresses are possible.
Depending on one-sided or alternating pressurisation, one or two back-up rings are used. For details on groove sizing (groove width L), please refer to our application catalogue or contact our application technology department.

Application Range
Temperature: -50 °C / +100 °C
Standard Material: POM

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.
