Back-Up Ring SP1Back-up ring, spiral shaped, for internal sealing applications.

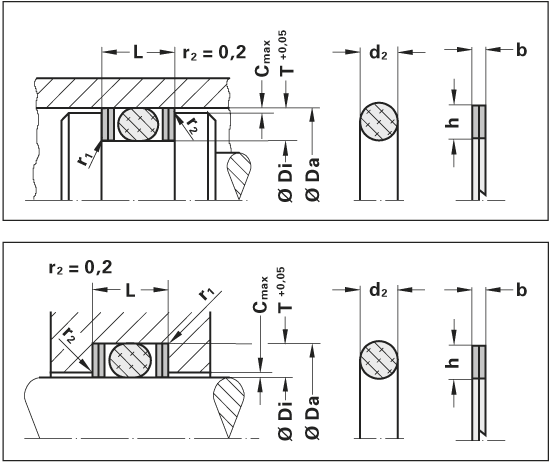

Depending on one-sided or alternating pressurisation, one or two back-up rings are used. For details on groove sizing (groove width L), please refer to our application catalogue or contact our application technology department.
Temperature: -100 °C / +200 °C
Standard Material: PTFE
Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.Load product catalog
Are you missing materials or dimensions?
Feel free to contact us!
Our sealing experts will be happy to advise you!
|Di [mm]||Da [mm]||B [mm]|
|Profile||Di [mm]||Da [mm]||B [mm]||Material||Mat. No.||V||Quantity|
