Fabric shaft seal WG4

Fabric shaft seal for heavy machine construction.

The Profile WG4 resp. WG4-S combines the characteristics of radial lip seals and face seals wich enables the use of just a single seal instead of a rotary shaft seal and e.g. a v-ring.

WG4-S is provided with an additional sufficiently robust dust lip to prevent the penetration of foreign bodies into the sealing system.

WG4-A (standard)
WG4-S (with additional dust lip)

Application Range
Sliding Speed: ≤ 15 m/s
Temperature NBR/Fabric: -30 °C / +100 °C (+120)*
Temperature HNBR/Fabric: -40 °C / +150 °C (+175)*
Temperature VMQ/Fabric: -50 °C / +200 °C (+250)*
Temperature FKM/Fabric: -20 °C / +200 °C (+250)*
* temporarily

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Load product catalog

Are you missing materials or dimensions?

Feel free to contact us!

Our sealing experts will be happy to advise you!

+49(201)86606-0 or vk@techno-parts.de

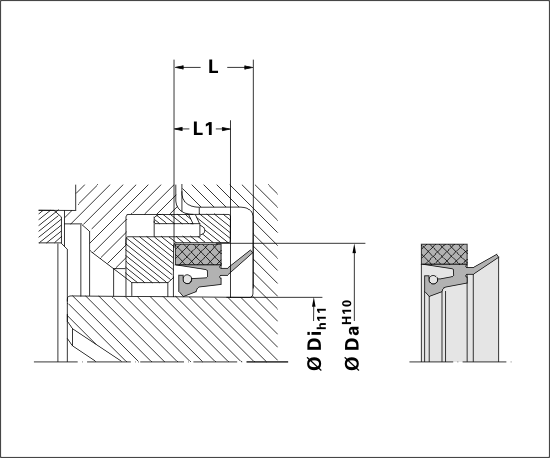

Di [mm] Da [mm] L [mm]
Material selection
Material No.
Profile Di [mm] Da [mm] L [mm] Material Mat. No. V Quantity
