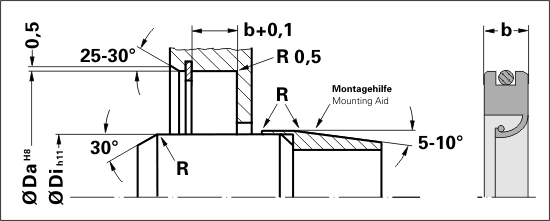

PTFE shaft seal WN2

PTFE shaft seal, with spring-supported sealing lip, for out-of-round shafts or large shaft play. Other materials are available for very high or very low operating temperatures (see PDF Catalogue or contact our application engineers).

Application Range

Pressure: ≤ 3,5 bar
Temperature: -20 °C / +250 °C
Sliding Speed: ≤ 8 m/s
Standard Material: PTFE-comp.

Load product catalog

Are you missing materials or dimensions?

Feel free to contact us!

Our sealing experts will be happy to advise you!

+49(201)86606-0 or vk@techno-parts.de

Filter

Di [mm] Da [mm] b [mm]
Min:
Max:
Material selection
Material:
Material No.
Profile Di [mm] Da [mm] b [mm] Material Mat. No. V Quantity
