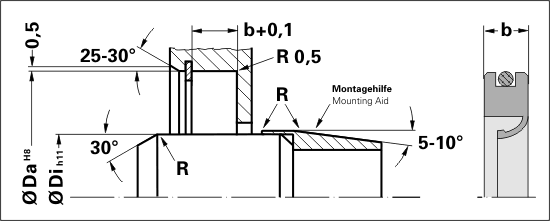

PTFE shaft seal WN6

Description
PTFE shaft seal, with increased pressing force, specially for gases and abrasive media.

Application Range
Temperature: -20 °C / +250 °C
Sliding Speed: ≤ 8 m/s
Standard Material: PTFE-comp.

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Load product catalog

Are you missing materials or dimensions?

Feel free to contact us!

Our sealing experts will be happy to advise you!

+49(201)86606-0 or vk@techno-parts.de

Filter

Di [mm] Da [mm] b [mm]
Min:
Max:
Material selection
Material:
Material No.
Profile Di [mm] Da [mm] b [mm] Material Mat. No. V Quantity
