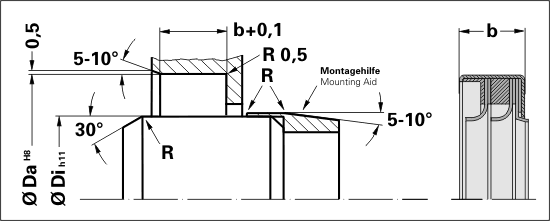

PTFE shaft seal WP3PTFE shaft seal with metal case, with two sealing lips for higher pressures with dust lip.
Pressure: ≤ 35 bar
Temperature: -20 °C / +250 °C
Sliding Speed: ≤ 3 m/s
Standard Material: PTFE-comp. (metal case)
Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.Load product catalog
|Di [mm]||Da [mm]||b [mm]|
|Profile||Di [mm]||Da [mm]||b [mm]||Material||Mat. No.||V||Quantity|
