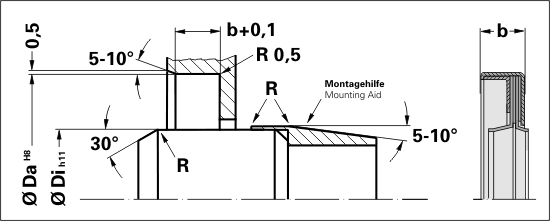

PTFE shaft seal WP5PTFE shaft seal with metal case, with reduced pressing force, well suited for use as protective bearing seal with dust lip.
Pressure: ≤ 1,5 bar
Temperature: -20 °C / +250 °C
Sliding Speed: ≤ 30 m/s
Standard Material: PTFE-comp. (metal case)
Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.Load product catalog
|Di [mm]||Da [mm]||b [mm]|
|Profile||Di [mm]||Da [mm]||b [mm]||Material||Mat. No.||V||Quantity|
