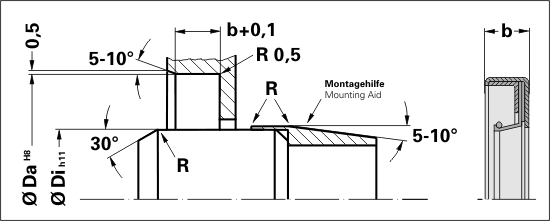

PTFE shaft seal WP6

PTFE shaft seal with metal case, with spring-supported sealing lip for out-of-round shafts or shaft play.

Application Range
Pressure: ≤ 3,5 bar
Temperature: -20 °C / +250 °C
Sliding Speed: ≤ 8 m/s
Standard Material: PTFE-comp. (metal case)

Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.

Load product catalog

Are you missing materials or dimensions?

Feel free to contact us!

Our sealing experts will be happy to advise you!

+49(201)86606-0 or vk@techno-parts.de

Filter

Di [mm] Da [mm] b [mm]
Min:
Max:
Material selection
Material:
Material No.
Profile Di [mm] Da [mm] b [mm] Material Mat. No. V Quantity
